Epoxy Nickel Coated SmCo Ring Magnets Mechanical Magnet Accessories ITAF16949

Product Categories
Mianyang Henshin Magnetic Material Co., Ltd.
Contact Now

Epoxy Nickel Coated SmCo Ring Magnets Mechanical Magnet Accessories ITAF16949

  • 1
  • 2

Brand Name : HSMAG

Model Number : Sm2Co17

Certification : ITAF16949

Place of Origin : China

MOQ : 1PCS

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 1000PCS 10Days

Delivery Time : 15 work days

Packaging Details : Cartons, sheet metal shielding packaging

Product name : Samarium Cobalt Magnets for sensor

shape : Ring

Material : Samarium Cobalt

Max Working Temperature : 350

Tolerance : ±20%, +/-0.05mm

Size : Customized Magnet Size

Type : Permanent

Composite : SmCo Magnet, Rare Earth Magnet

Sample : Avaliable, Free sample available

Coating : Ni, Zn, Epoxy.Black Epoxy. Nickel.Silver.etc, Nickel;Zinc;Sn;Chromium;Gold;Silver;Epoxy;

Contact Now

Samarium Cobalt Ring Magnets,Mechanical Magnet Accessories,permanent magnet

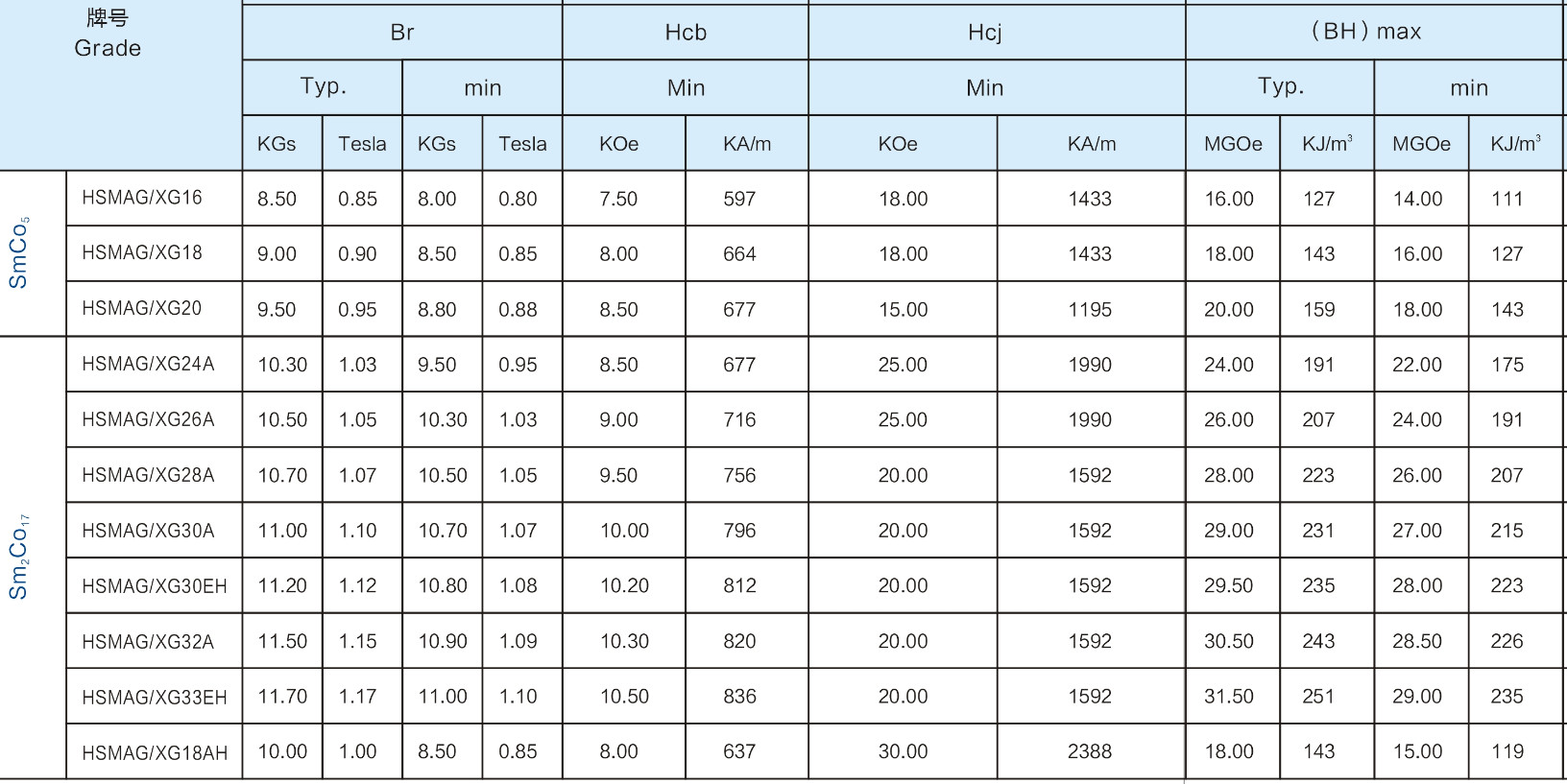

Product Paramenters

Product Name
SmCo Magnetic
Product Materials
Samarium Cobalt Magnet
Product Materials
Rare earth Magnet
Size of the products
Accept Customized
Working Temp
350°C
Magnetic direction
Through thickness direction, the flat surface is magnetic field.



Epoxy Nickel Coated SmCo Ring Magnets Mechanical Magnet Accessories ITAF16949



The components of Samarium and Cobalt?

One Sm atom and five Co atoms combine to form one SmCo5 atom. Two Sm atoms and seventeeen Co atoms combine to form one Sm2Co17 atom. Sm2Co17  magnets has the highest temperature of 350℃, it has high magnetic properties,excellent temperature characteristic and corrosion resistance.It is widely used in aerospace, electronic instruments, magnetic pumps, high temperature lamps, sensors andother fields.

And it can be produced in different shapes(round, square, ring, tile, bread), different properties.

(SmCo5 and Sm2Co17), different sizes(Wafer diameter1≤R≤100mm,Square≤130mm). Their reversible temp coefficient are SmCo5(- 0.05% / ℃), Sm2Co17(- 0.03% / ℃)

Inspection procedure:Raw material inspection

                                      Granularity inspection

                                      Green compact inspection

                                      Roughcast inspection

                                      Magnetic property inspection

                                      Dimensions inspection

                                      Apperance inspection

                                      Surface fiux inspection

                                      Integrated physical inspection

                                      Packing inspection



Our Certificates

Epoxy Nickel Coated SmCo Ring Magnets Mechanical Magnet Accessories ITAF16949



Logistics And Trade

You can choose the trade way as you like.



Epoxy Nickel Coated SmCo Ring Magnets Mechanical Magnet Accessories ITAF16949
